DKM-1

  • 제조사 : meister
  • 제조국 : Germany
•오일용
•스위치 타입
•0.5 ~ 110 l/min
Downloads Go to file downloads

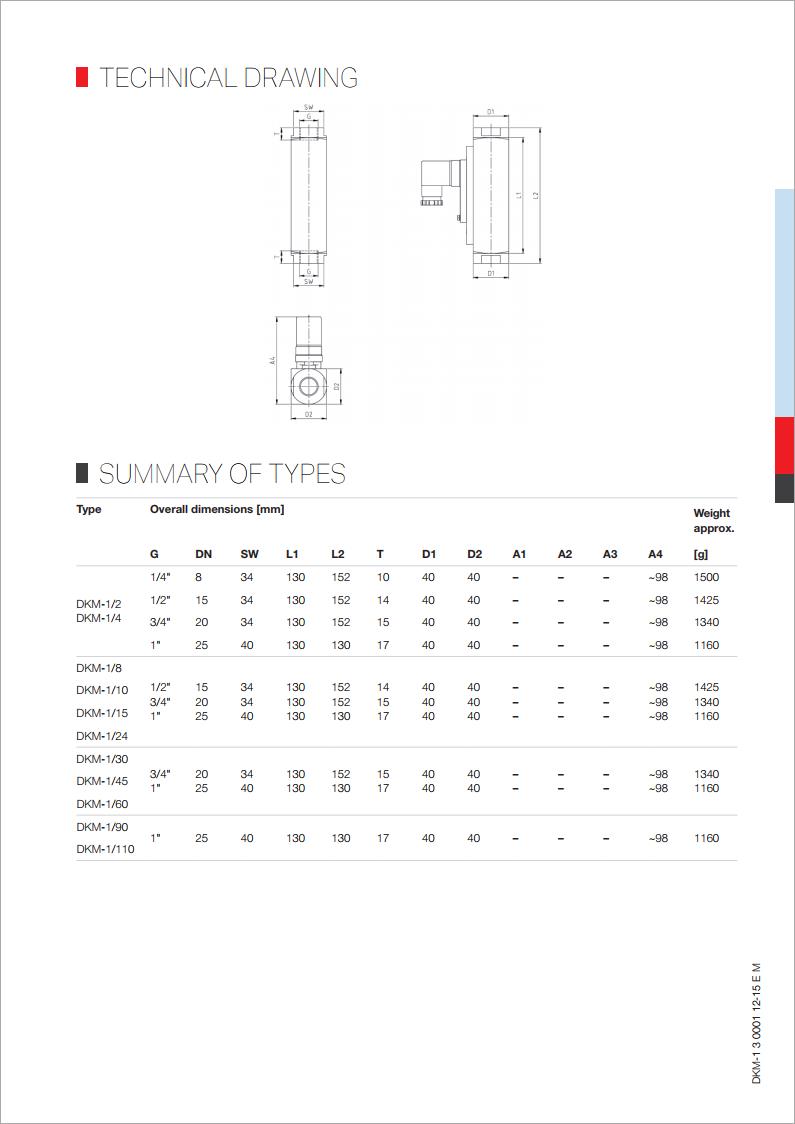

DKM-1 DIMENSION.jpg
제품목록

Related Product 관련제품

제품사양

 OPERATING DATA

 Operating pressure, max.



 250 bar (Brass version)

 300 bar (Stainless steel version)

 Pressure drop  0,02 – 0,4 bar
 Viscosity range  30 cSt to 600 cSt
 Temperature, max.  120 °C (optional 160 °C)
 Measuring accuracy  ±10 % of full scale
 Operation  Float measuring principle

 Application







  Mechanical engineering
 Central lubrication
 Circulation lubrication
 Transformers





 MEASURING RANGES

 Type



 Switch range for Oil, density 0,9 kg/dm³

               l/min                           gph                           gpm

 DKM-1/2                0,5 – 1,5                     8 – 24
 DKM-1/4                1 – 4                           16 – 63
 DKM-1/8                2 – 8                           32 – 127
 DKM-1/10                3 – 10                         48 – 160
 DKM-1/15                5 – 15                         80 – 240
 DKM-1/24                8 – 24                         125 – 380
 DKM-1/30                10 – 30                       160 – 480
 DKM-1/45                15 – 45                       240 – 710
 DKM-1/60                20 – 60                       320 – 950
 DKM-1/90                30 – 90                                                          8 – 24
 DKM-1/110                35 – 110                                                        9,5 – 29





 ELECTRICAL DATA

 Change over (COC)

 Normally open (NOC)

 250V · 1,5A · 50VA

 250V · 3A · 100VA

 Change over M12x1 (-20 °C – 85 °C)

 Normally open M12x1 (-20 °C – 85 °C)

 250V · 1,5A · 50VA

 250V · 3A · 100VA

 Change over PLC  250V · 1A · 60VA
 EX-version in compliance with ATEX directive
 ATEX II 2 G Ex mb II T6 & ATEX II 2 D Ex tD A21 IP67 T80 °C
 ATEX II 2 G Ex mb II T5 & ATEX II 2 D Ex tD A21 IP67 T100 °C
 Change over  250V · 1A · 30VA
 Normally open  250V · 2A · 60VA
 UL Recognized switch contacts
 Change over  240V · 1,5A · 50VA
 Normally open  250V · 3A · 100VA

 Electrical connection







  Connector in compliance with EN 175301-803, Form A
 (DIN 43650, Form A)
 Connector M12x1
 Cable (1 m)
 EX-version in compliance with ATEX directive  Cable (2 m)

 UL Recognized switch contacts



  Connector in compliance with EN 175301-803, Form A
 Cable (1 m)

 Ingress Protection



  IP65: Connector in compliance with EN 175301-803, Form A
 IP67: Cable or connector M12x1

 Output signal



  The contact opens / changes when the flow decreases
 below the set point.
 Power supply  Not required (potential-free reed contacts)
