WY

  • 제조사 : meister
  • 제조국 : Germany
•넓은 측정범위
•높은 정확도
•fitting 교체가능
•thread 주문제작 가능
Downloads Go to file downloads

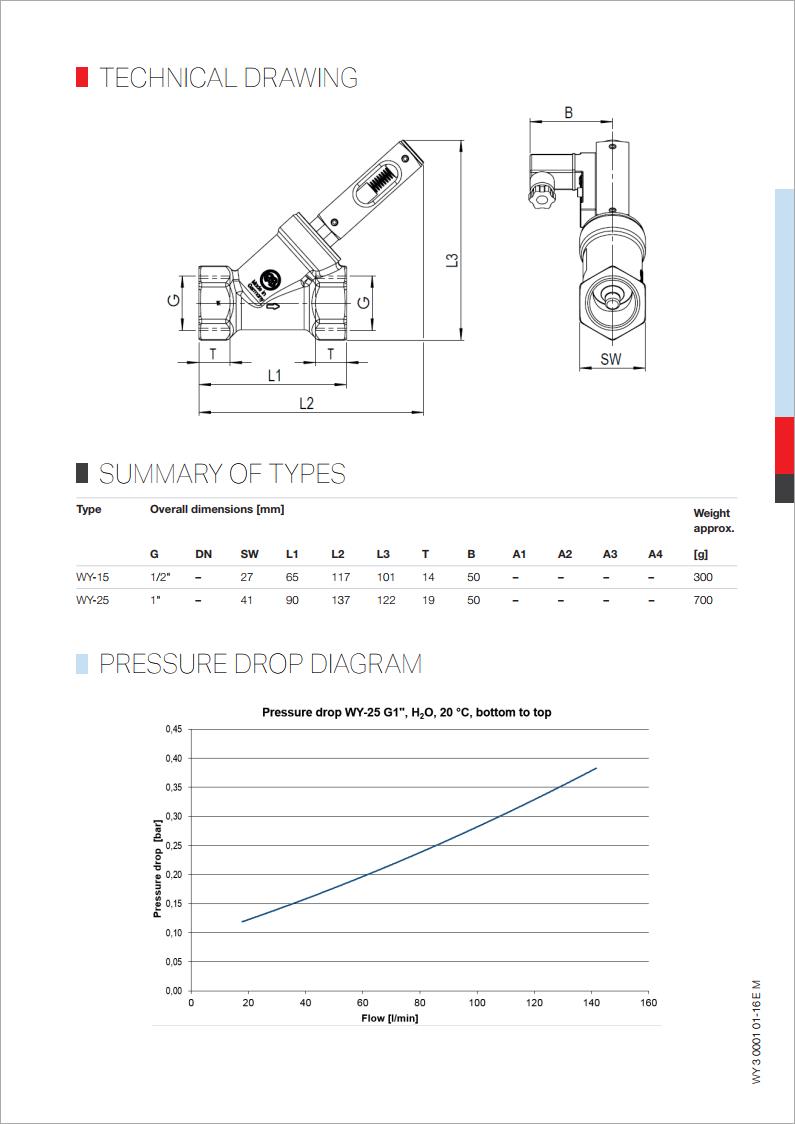

WY DIMENSION.PNG
제품목록

Related Product 관련제품

제품사양

 OPERATING DATA
 Operating pressure, max.  10 bar
 Pressure drop  approx. 0,3 bar
 Temperature, max.  100 °C
 Measuring accuracy  ±10 % of full scale
 Operation  Float measuring principle

 Application











  Cooling systems and cooling circuits
 Mechanical engineering
 Medical engineering
 Pharmaceutical industry
 Chemical industry
 Research & Development





 MEASURING RANGES

 Type



  Switch range for H2O at 20 °C
 l/min               gph              gpm
 WY-15  2,5 – 25
 WY-25  10 – 100





 ELECTRICAL DATA
 Change over (COC)  150V AC/DC · 1A · 20VA

 Normally open (NOC)



  140V AC · 0,7A · 20VA
 200V DC · 1A · 20VA
 Change over M12x1  125V AC/DC · 1A · 20VA

 Normally open M12x1



  125V AC · 0,7A · 20VA
 125V DC · 1A · 20VA

 Electrical connection



 Connector in compliance with EN 175301-803,

 Form C (DIN 43650, Form C), Connector M12x1

 Ingress Protection



 IP65: Connector in compliance with EN 175301-803,

 Form C or connector M12x1

 Output signal



 The contact opens / changes when the flow decreases

 below the set point.

 Power supply  Not required (potential-free reed contacts)
 Optional  Analog output: 4…20 mA or 0…10V
