DWM/A-L

  • 제조사 : meister
  • 제조국 : Germany
•기체용
•측면 Scale 표시
•1 ~ 1450 Nl/min
Downloads Go to file downloads

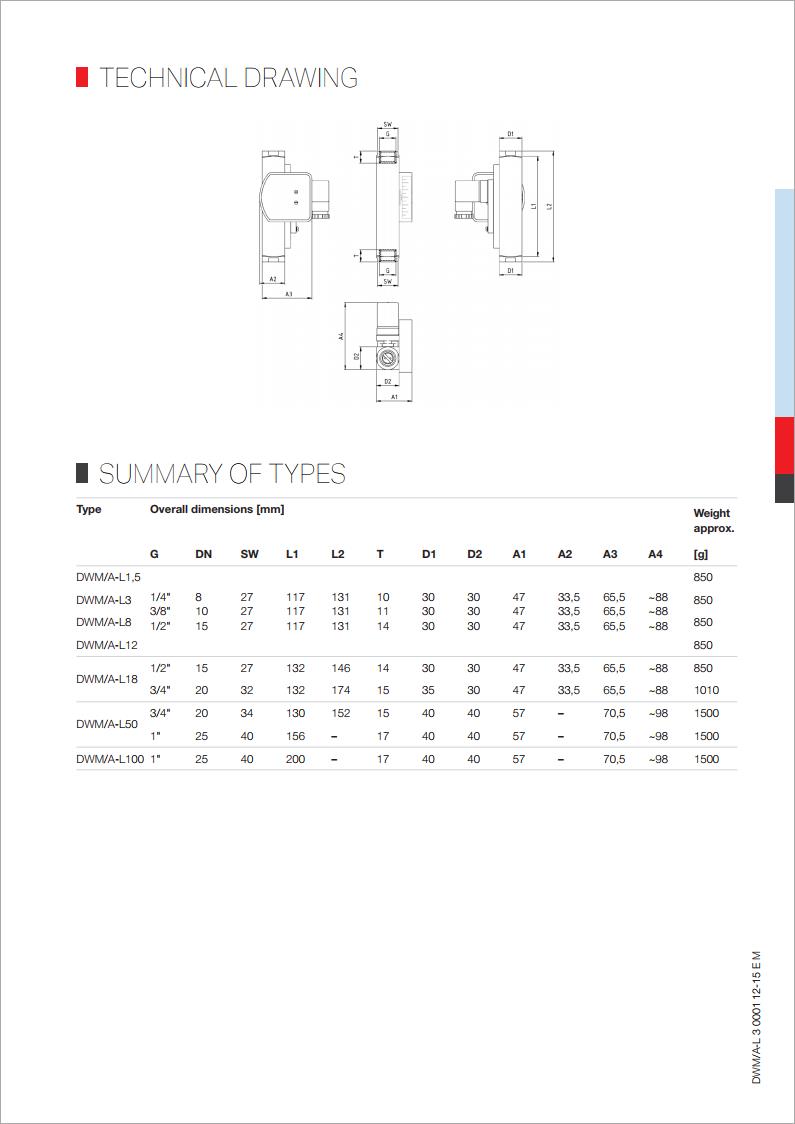

DWM_A-L DIMENSION.jpg
제품목록

Related Product 관련제품

제품사양

 OPERATING DATA

 Operating pressure, max.



 200 bar (Brass version)

 300 bar (Stainless steel version)

 Pressure drop  0,02 – 0,4 bar
 Temperature, max.  80 °C
 Measuring accuracy  ±10 % of full scale
 Operation  Float measuring principle

 Application











  Cooling systems and cooling circuits
 Mechanical engineering
 Medical engineering
 Pharmaceutical industry
 Chemical industry
 Research & Development





 MEASURING RANGES

 Type





Switch range for Air

 at 1 bar abs. & 20 °C

               Nl/min                         SCFH                       SCFM

 DWM/A-L1,5               1 – 28                          2 – 59
 DWM/A-L3               4 – 60                          8 – 127
 DWM/A-L8               6 – 160                       15 – 340
 DWM/A-L12               20 – 240                     40 – 510
 DWM/A-L18               40 – 360                     80 – 760
 DWM/A-L50               60 – 700                                                       2 – 24,5
 DWM/A-L100               200 – 1450                                                    7 – 51





 ELECTRICAL DATA
 Change over (COC)
 Normally open (NOC)

 250V · 1,5A · 50VA



 Change over M12x1 (-20 °C – 85 °C)
 Normally open M12x1 (-20 °C – 85 °C)

 250V · 1,5A · 50VA

 250V · 3A · 100VA

 Change over PLC  250V · 1A · 60VA
 EX-version in compliance with ATEX directive
 ATEX II 2 G Ex mb II T6 & ATEX II 2 D Ex tD A21 IP67 T80 °C
 ATEX II 2 G Ex mb II T5 & ATEX II 2 D Ex tD A21 IP67 T100 °C
 Change over  250V · 1A · 30VA
 Normally open  250V · 2A · 60VA
 UL Recognized switch contacts
 Change over  240V · 1,5A · 50VA
 Normally open  250V · 3A · 100VA

 Electrical connection







 Connector in compliance with EN 175301-803,

 Form A(DIN 43650, Form A)
 Connector M12x1
 Cable (1 m)

 EX-version in compliance with ATEX directive  Cable (2 m)

 UL Recognized switch contacts



  Connector in compliance with EN 175301-803, Form A
 Cable (1 m)

 Ingress Protection



 IP65: Connector in compliance with EN 175301-803,Form A
 IP67: Cable or connector M12x1

 Output signal



  The contact opens / changes when the flow decreases
 below the set point.
 Power supply  Not required (potential-free reed contacts)
