Series | VTY10 |
| • Low deviation in mass production, fixed pulse rate |

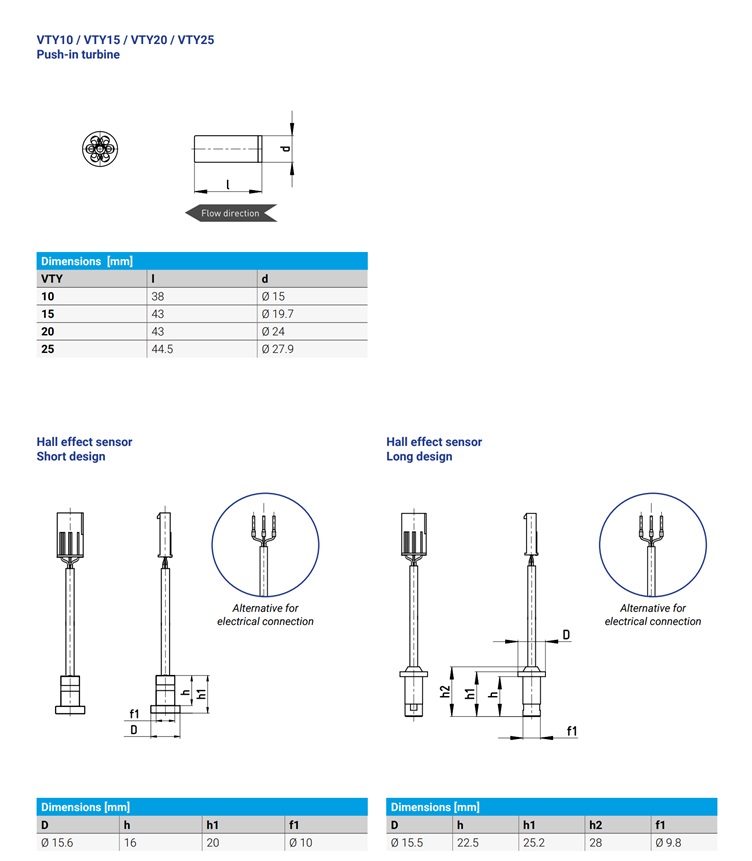

① Push in turbine | |
Flow range | 1...30 l/min (60...1,800 l/h) |
Accuracy | ±1 % of range |
Repeatability | ±1 % |
Signal output | From 0.7 l/min (42 l/h) |
Medium temperature | 0...90 °C (non-freezing) |
Nominal diameter | DN 10 |
| |
② Hall effect sensor | |
Nominal pulse rate Frequency output | 495 pulses/l , Square wave frequency signal, NPN open collector |
Power supply | 4.5...24 VDC |
Electrical connection | 80 mm PVC cable with Molex Mini-Fit® Jr. plug connector (part number 0039014036) 0.5 m PVC cable optional: 1 m PVC cable |
