레벨스위치

레벨스위치

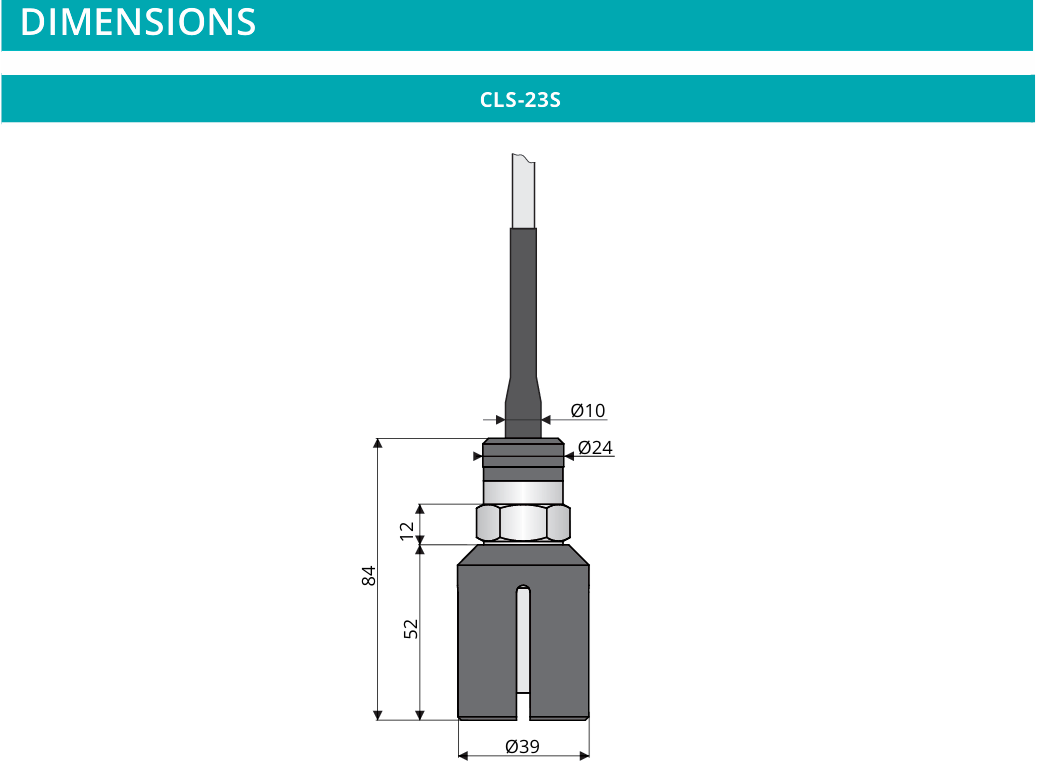

CLS-23S / 잠수형

  • 제조사 : Dinel, s.r.o
  • 제조국 : Czech Republic
•우물, 시추홀, 탱크내의 레벨측정
•스테인레스 스틸 재질
•교정없이 설치용이
DOWNLOAD
제품목록

제품사양

 Technical specifications

 Supply voltage

  6 ... 30 V DC

 Supply current – OFF state

 Max. 0.6 mA

 Switched current (min / max)

 3.3 / 40 mA

 Remanent voltage – ON state

 Max. 6 V

 Output time delay

 0.1 s

 Ambient temperature range

 -20 ... +70°C

 Housing material

 Plastic PP

 Protection basket material

 Stainless steel, plastic PP

 Protection class

 IP68 (1 MPa)

 Cable

 PVC 2x 0.75 mm

 Weight (without cable)

 Approx. 0.2 kg
