압력스위치

압력스위치

가변형 AF30_PDS

  • 제조사 : HERION & RAU Fluidtechnik GmbH
  • 제조국 : Germany
•Elastomer membrane
•손잡이 이용 쉬운 조절방식
•Female thread or flange connection
DOWNLOAD
제품목록

제품사양

Pressure Switch AF30 – Type PDS:



• Snap action micro switch
• 250V / 6A
• Change over contact SPDT
• Adjustment range: 0,2…16bar
• Preset ex works possible
• Comfortable adjustment via adjustment knob
• Robust design
• Norm connection DIN EN 175301-803A or M12x1
• Female thread or flange connection



 Technical data  Order code
 Construction: snap action micro switch AF30

PDS - A - BBB - C - DE - F

 Operating fluid: compressed air, neutral fluids/gases

A

Output

D

Fluid connection material

 Mechanical installation: over fluid connection 1 = SPDT without = zinc dicast
 Mounting position: any
 Overpressure limit: 60bar

Fluid connection

 Repeatability: max. ±2% of full scale at room temperature

BBB

Pressure adjustment range

 2 = female G1/4" fixed
 Hysteresis*: guide value: 0,1bar + 5…10% of set point, not adjustable 002 = 0,2…2bar

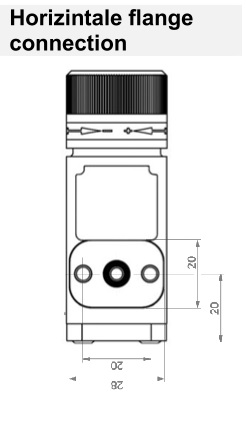

 4 = horizontal flange

       incl.M5x40, O-Ring 5x1,5

 Switching cycles, mech: > 5x106 008 = 0,5…8bar
 Switching frequenzy: max. 100 cycles / min 016 = 1…16bar T = female Rc1/4" fixed
 Temperature range*: -40…+100°C as a function of used elastomere

C

Principle: Membrane


 Vibration resistance:  10g (10 ... 2000Hz) sinus acc. to ISO 16750-3 M = NBR                    -20…+80°C

F

Electrical connection

 Shock resistance: 30g, 14ms shaped sinus acc. to DIN 40046, T7 T = LowTemperature  -NBR-40…+80° 1 = DIN EN 175301-803A incl. socket
 Swichting element: snap action micro switch with self cleaning pins E = EPDM                  -40…+100°C 2 = plug M12x1
 CE-mark: acc. to EU-standard 2014/35/EWG V = Viton                   0…+100°C
 Protection class: IP65 acc. to DIN EN 60529
 Weight: 0,3kg
